CAAD14 1

Key Features

• Legendary CAAD performance with SmartForm C1 Premium Alloy construction

• Reserve 57|64 Carbon aero wheels for elite-level speed and stability

• SRAM Force AXS 13-speed drivetrain with wireless shifting

• Integrated SystemBar R-One carbon cockpit for maximum aerodynamics

• Power meter equipped SRAM Force crankset

• Tubeless-ready setup with Vittoria Corsa PRO tires

Frame & Fork

Frame

• CAAD14 SmartForm C1 Premium Alloy

• Integrated cable routing

• 12x142mm thru-axle

• BSA 68mm threaded bottom bracket

• Flat mount disc brake

• UDH compatible

Fork

• CAAD14 Full Carbon

• 1-1/8" to 1-1/2" Delta steerer

• Integrated crown race

• 12x100mm thru-axle

• Flat mount disc brake

• Internal cable routing

• Offset:

  • 55mm (48–54cm)

  • 45mm (56–61cm)

Wheels

• Rims: Reserve 57|64 Carbon, Turbulent Aero, tubeless ready

• Front Hub: DT Swiss 370, 12x100mm, Centerlock

• Rear Hub: DT Swiss 370 LN Ratchet System, 12x142mm, Centerlock

• Spokes: DT Swiss Competition

• Tires: Vittoria Corsa PRO TLR, 700x29c, tubeless ready

• Valves: Fillmore Tubeless valves

Drivetrain

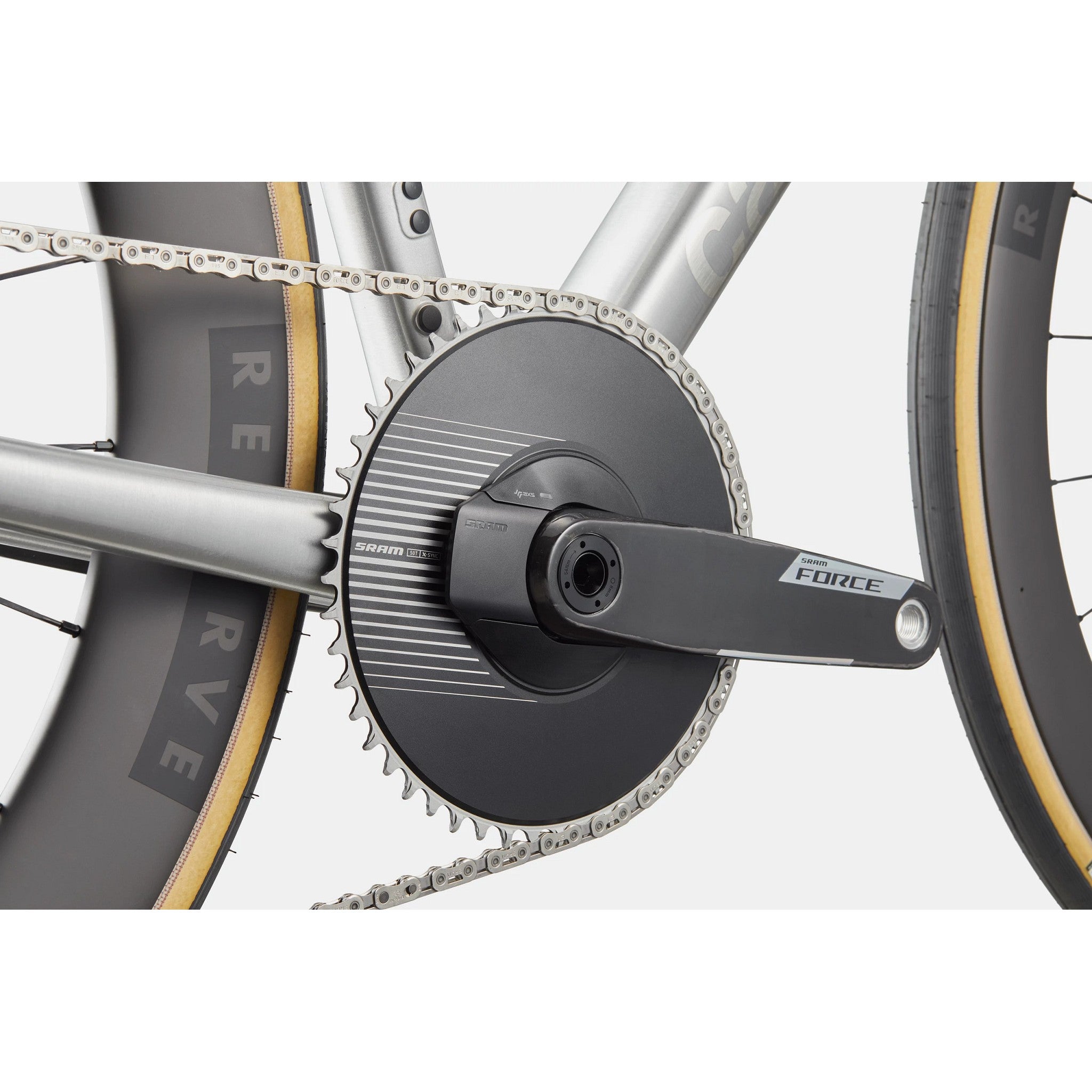

• Crankset: SRAM Force AXS Power Meter, 50T Aero

  • 165mm (48–51cm)

  • 170mm (54–56cm)

  • 172.5mm (58–61cm)

• Bottom Bracket: SRAM DUB BSA Road 68 Wide

• Chain: SRAM Force, 13-speed

• Cassette: SRAM Force XPLR, 10–46T, 13-speed

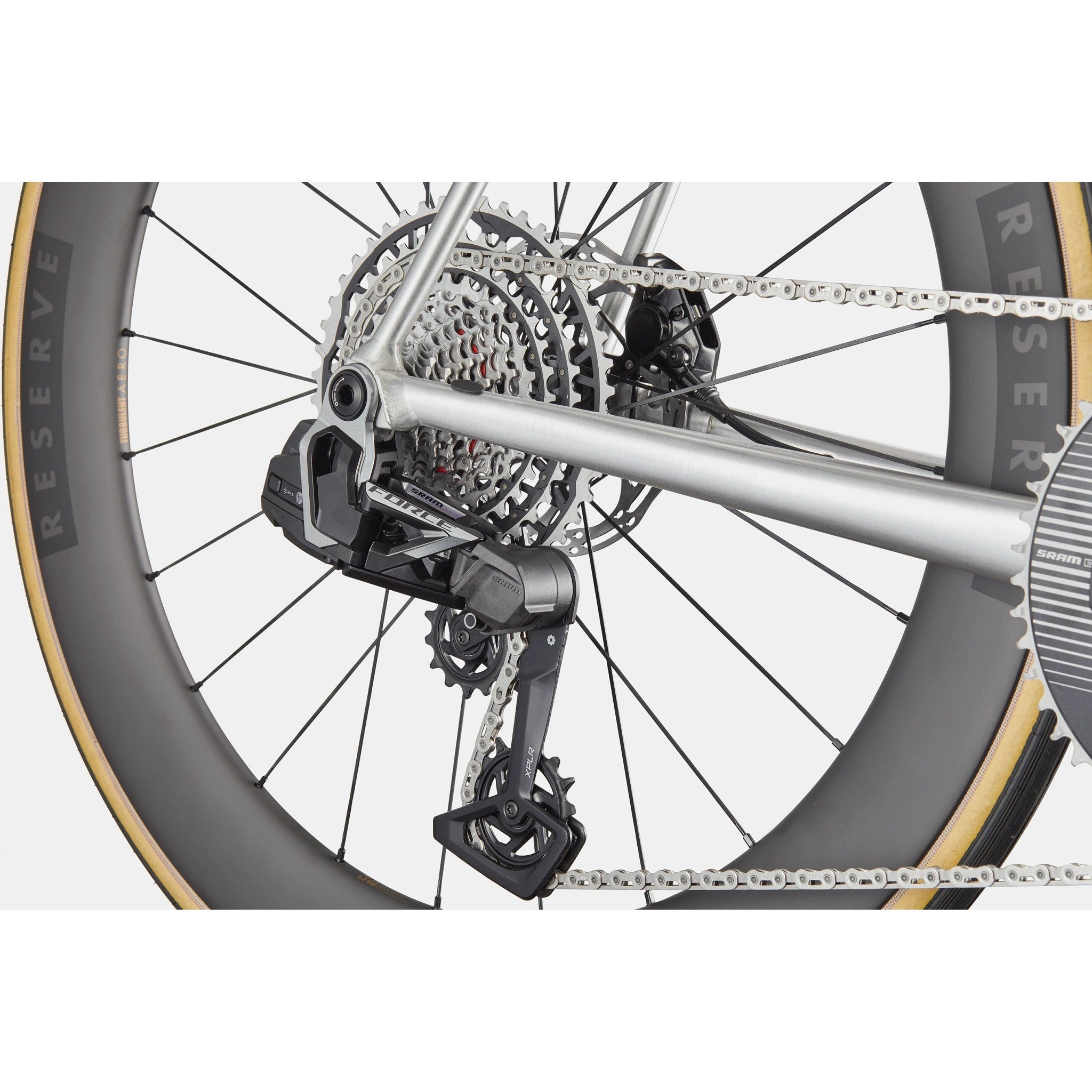

• Rear Derailleur: SRAM Force XPLR AXS

• Shifters: SRAM Force AXS

Cockpit

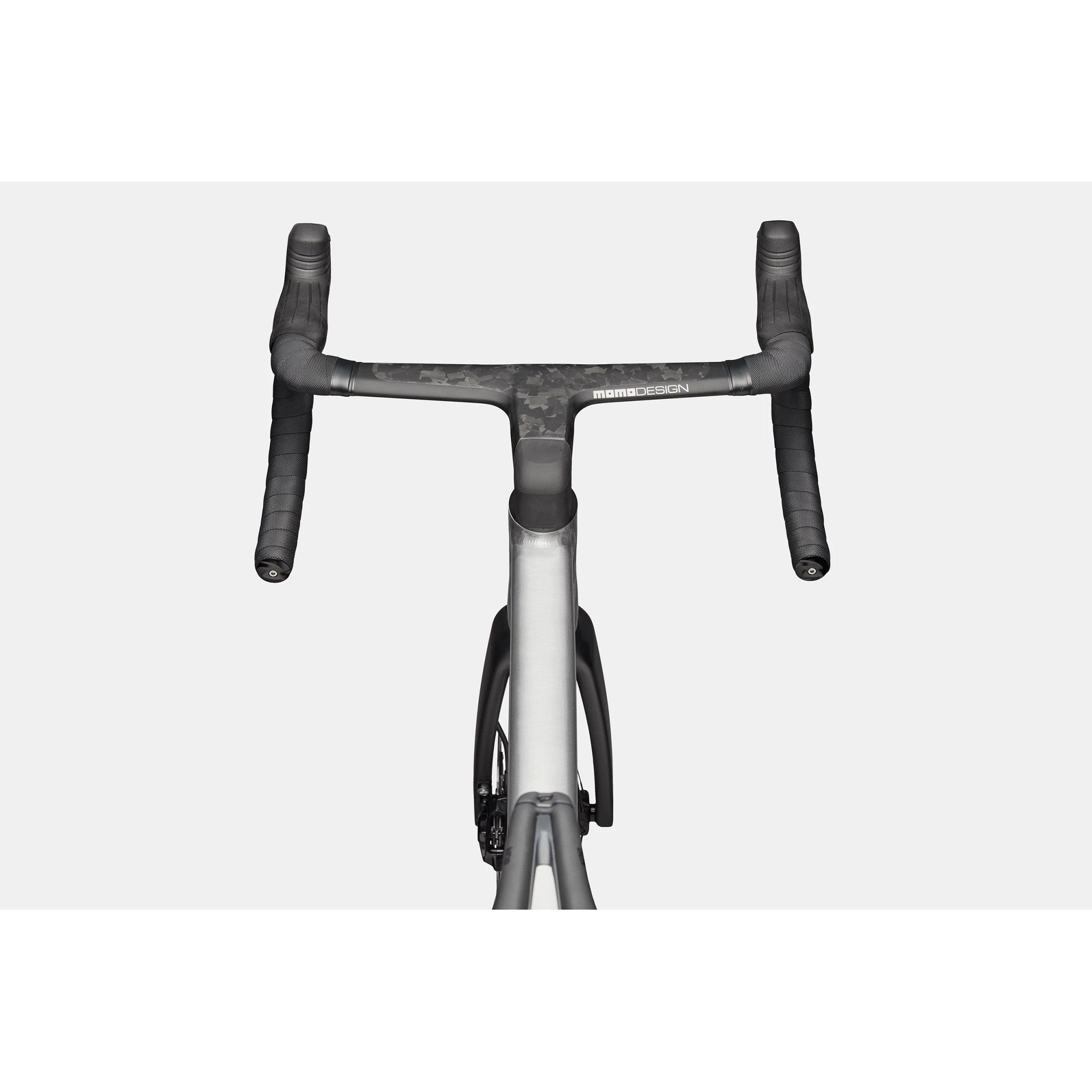

• Handlebar / Stem: Cannondale SystemBar R-One

  • Full carbon integrated bar/stem

  • Aero low-drag design

  • Internal cable routing

Sizes:

• 90x380mm (48–51cm)

• 100x380mm (54–56cm)

• 110x400mm (58–61cm)

• Bar Tape: Cannondale 3.5mm

• Headset: Integrated, 1-1/8" – 1.5"

Brakes

• Brakes: SRAM Force AXS Hydraulic Disc

• Rotors: 160mm / 160mm SRAM Centerline Centerlock

Finishing Kit

• Saddle: Prologo Dimension STN NDR

• Seatpost: Cannondale SAVE Carbon, 27.2x350mm, 11mm offset

• Pedals: Not included

Extras

• Fillmore Tubeless Valves

• SRAM AXS Charger

• SystemBar R-One Garmin/Wahoo computer mount

Sizes

48, 51, 54, 56, 58, 61
